# Network Connectivity

The default configuration specifies that Interface 1 must be connected to the property's primary network, providing essential internet access and enabling communication with all devices included in the integration scope. Interface 2 is reserved to support secondary or auxiliary networks, facilitating additional integration services or accommodating specialized **neuro**edge™ gateway configurations tailored to unique project requirements. This structured connectivity approach ensures flexibility, security, and reliable operation within diverse network environments.

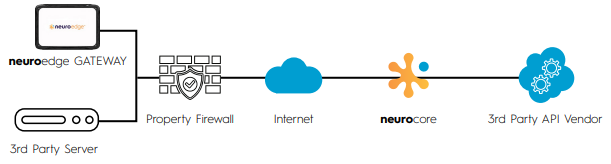

## Standard On Prem Infrastructure Deployment

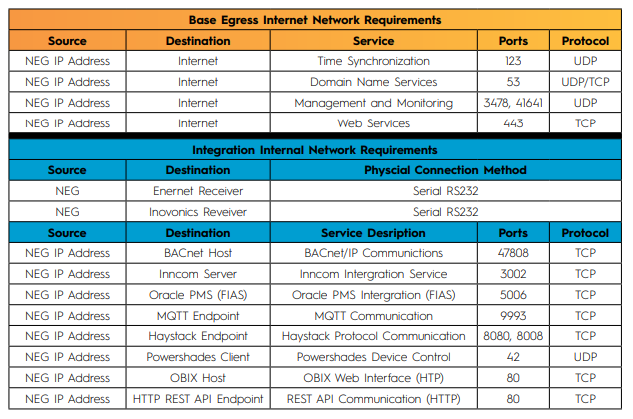

Firewall Policy Management: Required Traffic Flows

<figure><img src="https://content.gitbook.com/content/2oudEpek60OWBeMBjRNk/blobs/0Nh5HSo1b6DI0VfjoKdL/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/2oudEpek60OWBeMBjRNk/blobs/bBi7NYNA9uTi9zvp56HB/image.png" alt=""><figcaption></figcaption></figure>

## Hybrid Infrastructure Deployment

<figure><img src="https://content.gitbook.com/content/2oudEpek60OWBeMBjRNk/blobs/xtRISv3aorwXHM8H9rRV/image.png" alt=""><figcaption></figcaption></figure>

## Cloud API Infrastructure Deployment

<figure><img src="https://content.gitbook.com/content/2oudEpek60OWBeMBjRNk/blobs/jPghtbVurDBnO1PiHNan/image.png" alt=""><figcaption></figcaption></figure>
